Mobile Static Grounding System

Mobile Static Grounding System

The Earth-Rite® Mobile Ground Verification system (MGV) is a unique, patented technology designed to provide automatic confirmation of a positive electrostatic ground connection for trucks collecting and transferring flammable / combustible products.

Vacuum trucks and tank trucks, including their hoses and hose connections, are susceptible to static charge accumulation during the transfer of product into or out of the truck’s containment system. This accumulation of static charge is equivalent to a hidden source of ignition and if discharged as a static spark can lead to the ignition of the product or the atmosphere in which the truck and material handling team is operating.

To eliminate the risk of incendive static spark discharges the API standard 2219: Safe Operation of Vacuum Trucks in Petroleum Service recommends that vacuum truck operators transferring flammable and combustible product in hazardous locations must fully ground the truck prior to any other task in the transfer operation by connecting the truck to a “proven ground source”.

The Earth-Rite MGV is designed to enable operators establish safe grounding of their vehicle in accordance with this standard.

Typical Grounding Applications:

  • Cleaning & material recovery operations for on-site cleaning of storage tanks and chemical spills.
  • Transporting chemicals to various stages of production on chemical manufacturing sites.
  • Transporting flammable product to external sites where installed grounding systems are not present or have not been verified by the supplier.
  • Hazmat Recovery operations recovering flammable spillages following transportation and loss of containment incidents.
Do you want more information?

Downloads

Do you want more information?

Video

Benefits

  • Static Ground Verification

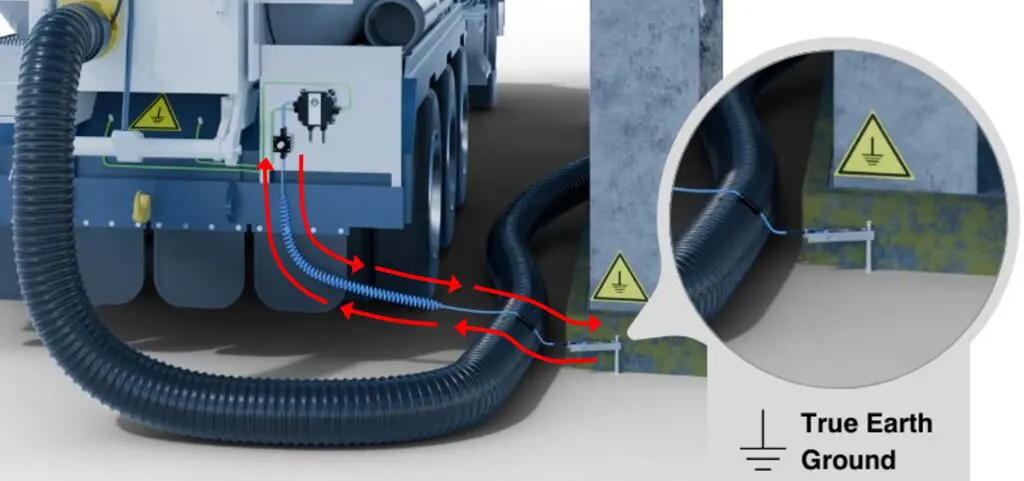

    The MGV system ensures the connection resistance of the object that is identified as the ground source to earth, is low enough to safely dissipate static charges from the truck.

  • Continuous Ground Loop Monitoring

    When the Static Ground Verification process is confirmed, the MGV system continuously monitors the connection resistance of the truck to this verified grounding point for the duration of the transfer process. This connection resistance must be maintained at 10 ohms (or less) for the duration of the transfer process.

  • Two Output Contacts

    located in the control unit of the MGV system can interlock with pumps or other control devices to prevent transfer operations should a static ground connection fail to be established or maintained for the transfer process.

  • Easy and Quick Operation

    Removing the need for taking manual resistance readings or interacting with complex system interfaces the operator activates the system by simply connecting the system’s grounding clamp to a site designated grounding point, buried metal structure (pipes, storage tanks) or temporary points like buried grounding rods.

System Options

  • Earth-Rite MGV Options

    • MGV Tester.
    • Retractable Cable Reel.
    • Portable Static Grounding Kit.

Certification / Technical

  • Ingress Protection

    IP 66 / Type 4X.

  • Operating Temperature Range

    -40°F to +122°F – CSA
    -40°C to + 50°C – ATEX / IECEx

  • Power Supply

    Selectable 12 V or 24 V DC.
