ATEX / FM Approved Static Grounding Clamps, Cables & Reels

Static Grounding Clamps

Static grounding systems like the Earth-Rite® range combine interlock control and visual indication to verified ground connection points and offer the highest levels of protection over electrostatic ignition risks. However, equipment specifiers may select passive grounding devices, like single pole clamps, to ground and bond plant equipment.

When flammable or combustible products are being handled and processed in hazardous areas it is essential to specify certified equipment that will protect personnel from sources of electrostatic ignition.

Static grounding clamps that combine Factory Mutual & ATEX approvals are rigorously tested and certified to ensure they are capable of dissipating static charges from potentially charged equipment. This is especially significant when the equipment can be covered in coatings, product deposits or rust that is capable of preventing the clamp from making low resistance electrical contact with the equipment to be grounded.

Establishing a solid electrical connection can only be achieved by penetrating any connection inhibitors like coatings, product deposits and rust. Factors like this will impede the dissipation of static charges from the object to ground if the clamp is not capable of penetrating them and making a connection to the base metal of the container or vessel. Once a strong connection is established, it is vital that this connection remains constant for the duration of the process operation.

Factory Mutual approved clamps undergo a series of mechanical and electrical tests to ensure they can function as reliable static grounding clamps in EX / HAZLOC areas.

ATEX certification ensures there are no sources of mechanical sparking, like thermite reactive materials such as aluminium, or sources of stored mechanical energy, present in the construction of the clamp.



Purchase

Downloads

Do you want more information?

Benefits

  • Earthing Clamp Pressure Testing

    Ensures the earthing clamp is capable of establishing and maintaining low resistance electrical contact with equipment (FM approvals).

  • Electrical Continuity Testing

    Ensuring the continuity from the tip throughout the earthing clamp is less than 1 ohm (FM approvals).

  • High Frequency Vibration Testing

    Ensures the earthing clamp is capable of maintaining positive contact when attached to vibrating equipment (FM approvals).

  • Mechanical Pull Testing

    Ensures the earthing clamp cannot be pulled off the equipment without an intentional application of force (FM approvals).

  • Sources of mechanical sparking

    Ensures no mechanical sparking sources are present in the clamp (ATEX certification).

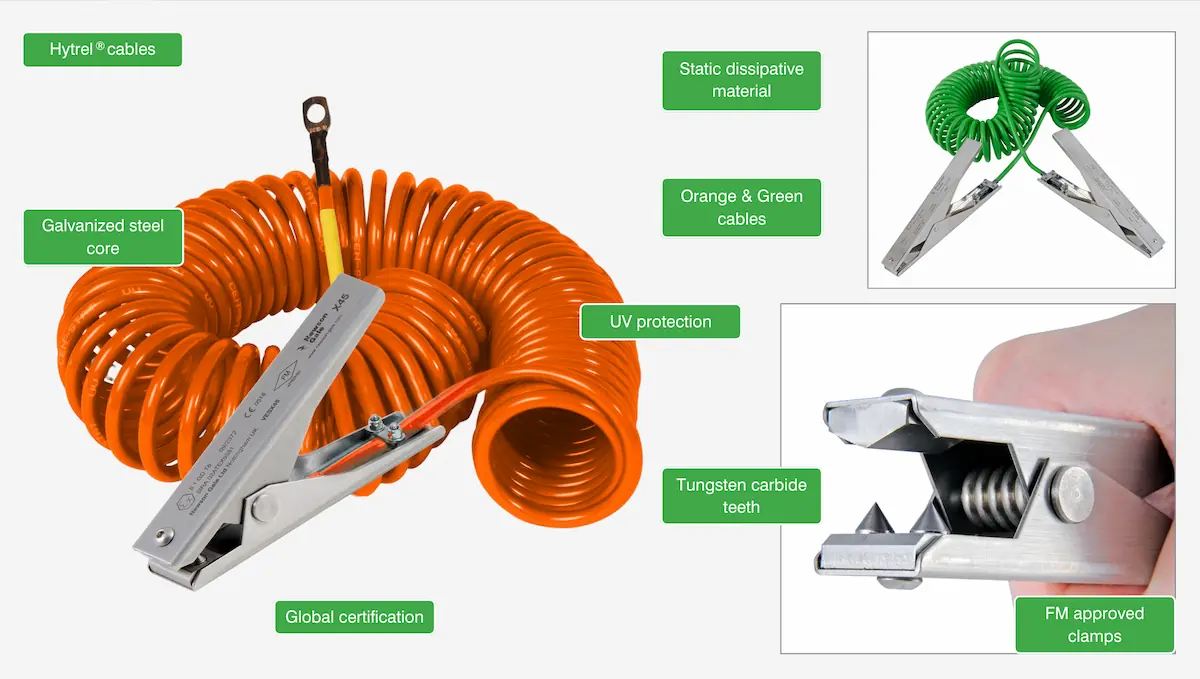

System Options

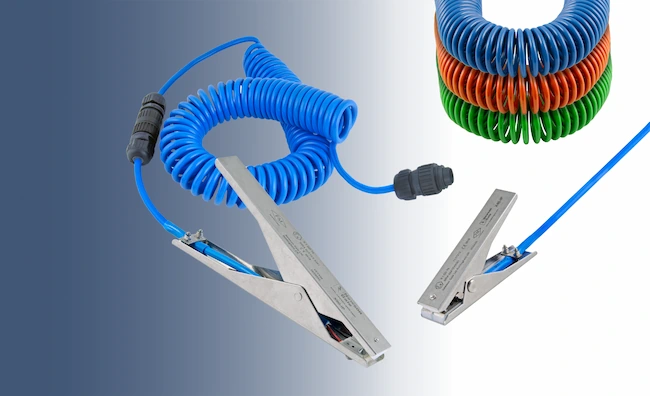

  • Cen-Stat X45 and X90 Clamp Options

    • Spiral cable lengths 10 ft. (3 m), 16 ft. (5 m) or 32 ft. (10 m).
    • Cen-Stat cable available in Green or Orange.

Certification / Technical

  • ATEX Certified / Factory Mutual approved
